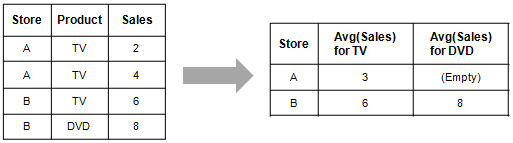

Pivoting turns common cell values into row groups as well as column groups and summarizes data by computing aggregates. This small example depicts it very well.

(scroll down for live example)


groupModel is the main object that describes various aspects of pivoting through declarative sub-options during initialization and run time.

        var groupModel = {
            on: true, //grouping mode.
            pivot: true, //pivotMode
            groupCols: ['year'], //grouping along column axis.
            agg:{ //aggregate fields.
                gold: 'sum',
                silver: 'sum',
                bronze: 'sum'
            header: true, //show grouping toolbar.
            grandSummary: true, //show grand summary row.
            dataIndx: ['country'], //grouping alogn row axis.
            collapsed: [ false, true]
Any change in groupModel options can be made in run time with Group().option() method.
        groupCols: ['sport'], ['year'], //change in grouping along column axis.
        agg:{ //change in aggregates.
            gold: 'avg'


toolPanel ( at right edge inside the grid ) is the GUI to map the user actions to groupModel in run time; toolPanel calls Group().option() method internally to manipulate groupModel.

User actions in toolPanel can be detected by subscribing to groupOption event which fires whenever there is a change in groupModel option.

Pivoting can be programmatically manipulated by setting various groupModel options with Group().option()

toolPanel itself can be configured during initialization through toolPanel options and can be programmatically manipulated by calling ToolPanel() methods. Behaviour of columns in the toolPanel can be configured through special column properties (refer API for details):

  1. denyAgg
  2. denyGroup
  3. denyPivot
  4. tpCls
  5. tpHide

Row groups

groupModel.dataIndx stores row groups as array, it's bound to "Group Rows" pane in the toolPanel.

Column groups

groupModel.groupCols stores column groups as array, it's bound to "Group Columns" pane in the toolPanel. It becomes active ( also becomes visible in toolPanel ) only when groupModel.pivot is true.

Pivot Mode

groupModel.pivot stores the pivotMode as boolean value. In toolPanel it's bound to Pivot mode check box. Only row grouping can take place when it's off.


groupModel.agg stores aggregates as object of dataIndx, aggregate value pairs. In toolPanel it's bound to Aggregates pane.


Strings used in toolPanel can be localized with help of Localization strings

Pivoting of Olympics medals data. ( ~ 9000 records )
